多年致力于气动液压行业
专业气液增压缸、非标压装设备制造商
|
规格型号
|
PAC-D-03T |
PAC-D-05T |
PAC-D-10T |
PAC-D-15T |
PAC-D-20T |
|
开口高度 mm |
250 |
||||
|
增压缸规格 |
PAC-A-03T |
PAC-A-05T |
PAC-A-10T |
PAC-A-15T |
PAC-A-20T |
|
总行程 mm |
100 |
||||
|
增压行程 mm |
15 |
||||
|
模柄内孔 mm |
25深45 |
30深45 |
|||
|
电源 |
AC 220V,500/60Hz |
||||
|
使用起源压力Mpa |
0.4-0.7 |
||||
|
重量 KG |
160 |
180 |
220 |
270 |
290 |
|
|
|||||
|
使用压力MPa |
理论输出力KN |
理论输出力KN |
理论输出力KN |
理论输出力KN |
理论输出力KN |
|
0.4 |
19.5 |
39.2 |
61.3 |
100.4 |
136.5 |
|
0.5 |
24.4 |
49 |
76.6 |
125.5 |
170.7 |
|
0.6 |
29.3 |
58.8 |
92 |
150.6 |
204.8 |
|
0.7 |
34.2 |
68.6 |
1.7.3 |
175.7 |
238.9 |
|

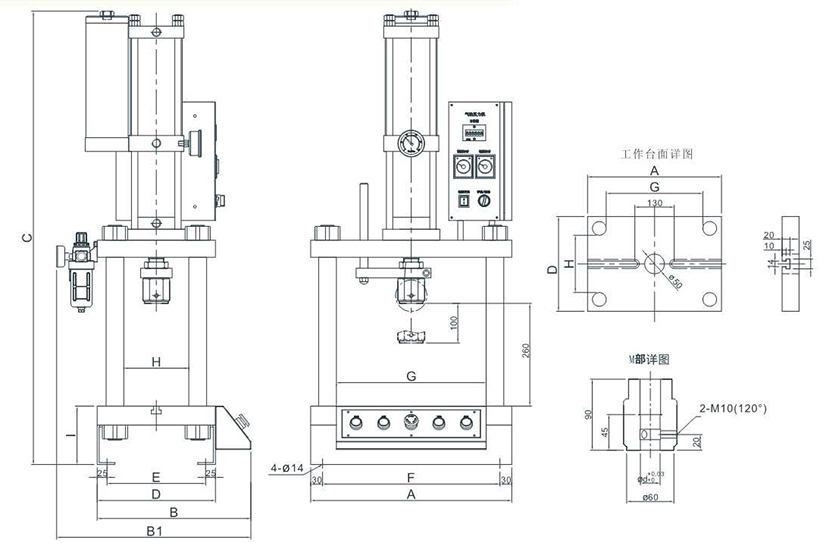

规格型号 |
A |
B |
B1 |
C |
D |
E |
F |
G |
H |
I |
d |
|
PA-C-03T |
470 |
370 |
473 |
1101 |
280 |
230 |
410 |
360 |
165 |
143 |
25 |
|
PA-C-05T |
470 |
370 |
473 |
1114 |
280 |
230 |
410 |
360 |
165 |
143 |
25 |
|
PA-C-10T |
510 |
390 |
493 |
1148 |
300 |
250 |
450 |
380 |
165 |
148 |
25 |
|
PA-C-15T |
540 |
410 |
533 |
1182 |
320 |
270 |
480 |
400 |
180 |
153 |
30 |
|
PA-C-20T |
540 |
410 |
533 |
1256 |
320 |
270 |
480 |
400 |
180 |
153 |
30 |
